The power of LPG
Bayliner 2052 LS
Marine index
This photo shows the
TORNADO
LPG mixer on top of the carburettor of a MERCRUISER 4.3L V6 Vortec.The carburettor is still functional and therefore the engine can run on LPG or on petrol.
The TORNADO LPG system is capable of delivering an air flow of 600 CFM.
In this case the maximum air flow is limited by the size of the Tornado low performance arm which can only supply an air flow of 500 CFM. For the Tornado high performance see: Fletcher 20 GTS

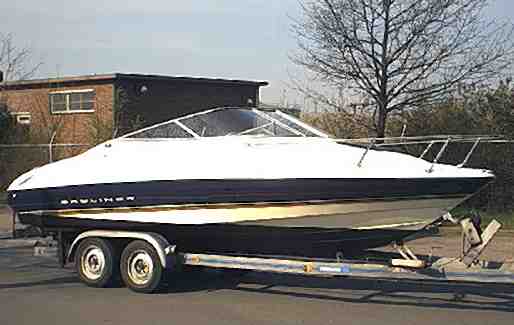

This photo shows a converted boat:
Type :Bayliner
2052 ls
Length :6.25 meter
Width :2.34 meter
weight :approx.
1151 kg
Engine :MERCRUISER
4.3L V6
LPG system:TORNADO

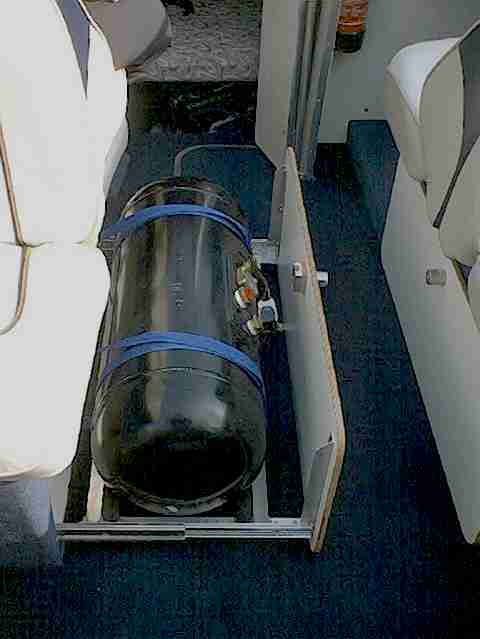

This photo shows one of removable LPG tanks.
The tanks can slide in and out of the locker on top of the specially made tank frame.
The second tank is in the closed locker at the right side.
It is also possible to install 2 non-removable 48 litres tanks in the same lockers.
If the tanks are fixated to the boat they can be refilled by an external filler connection on the outside of the boat.
The 2 x 48 litres tanks contain enough LPG for a normal day of water-skiing.
